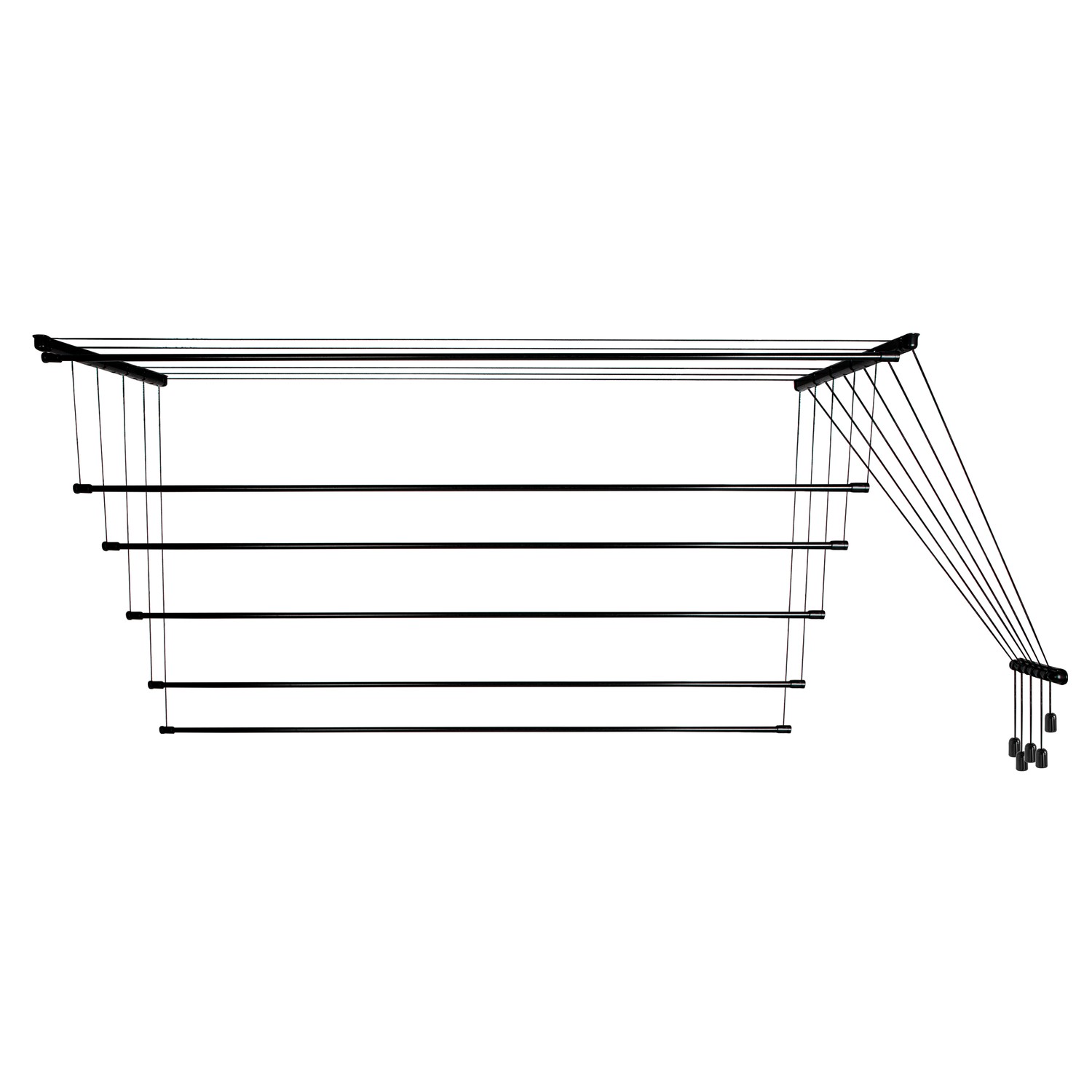

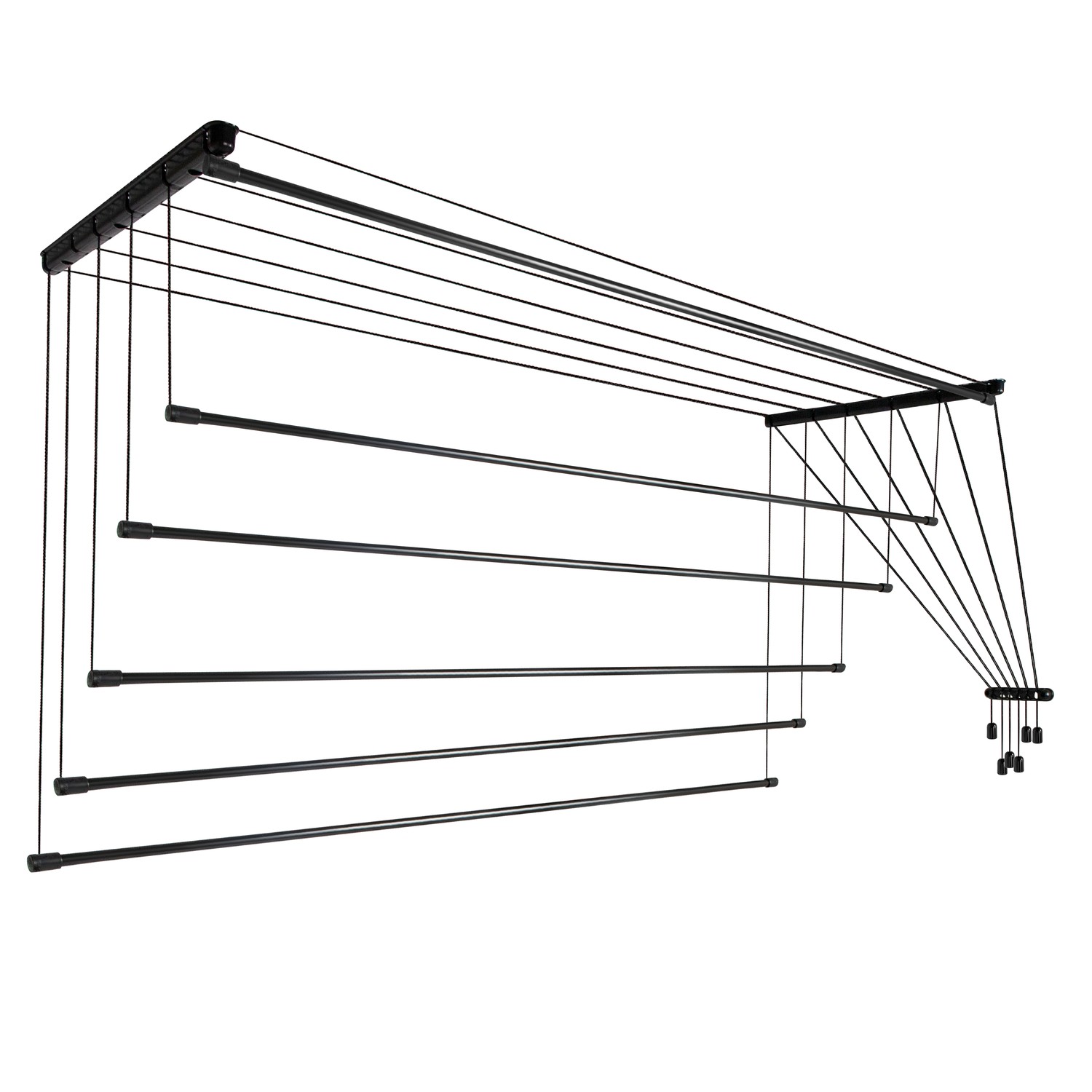

Laundry ceiling dryer 6×2.0 m, aluminum (AV200B-6AL)
10,0 zł
The ceiling-mounted laundry dryer is ideal for drying laundry efficiently and saving space. This durable aluminum design is perfect for use in the bathroom, balcony, or loggia. Its rods easily adjust for convenient hanging and drying. Compact and practical, it complements any interior.
- Ceiling-mounted for space-saving drying
- 6 aluminum rods with powder coating
- Easy to adjust the rod height
- Compact and versatile design
- Suitable for indoor use in bathrooms or balconies
In stock
Description
Product Description
Laundry ceiling dryer 6x2.0 m, aluminum (AVDC200B-6AL)
DURABILITY AND PRACTICALITY
Ceiling dryer – a compact and convenient clothes drying rack. It allows you to quickly and efficiently dry your laundry. The black color of the product fits any interior. The design can be used in the bathroom, on the balcony, or on the loggia.

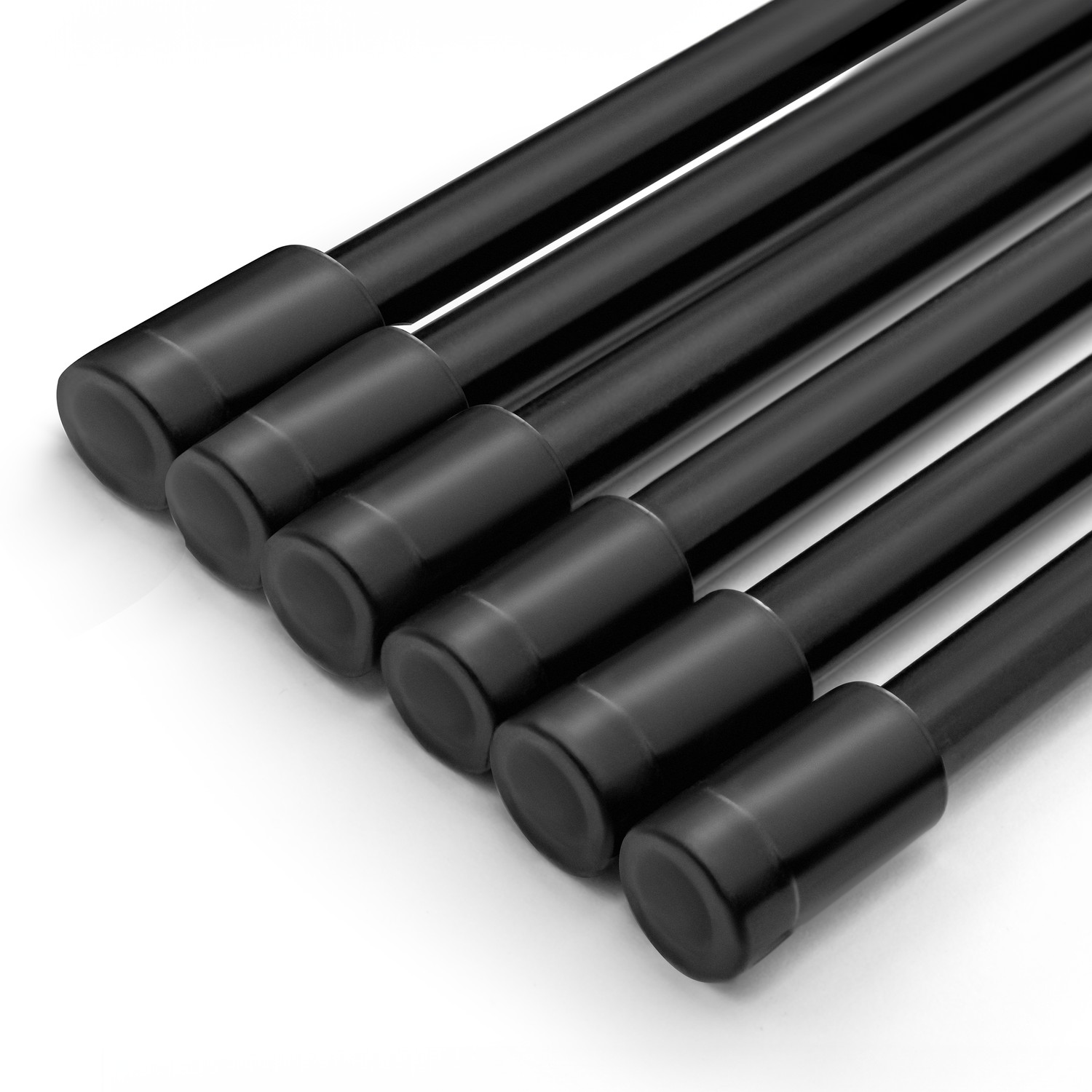

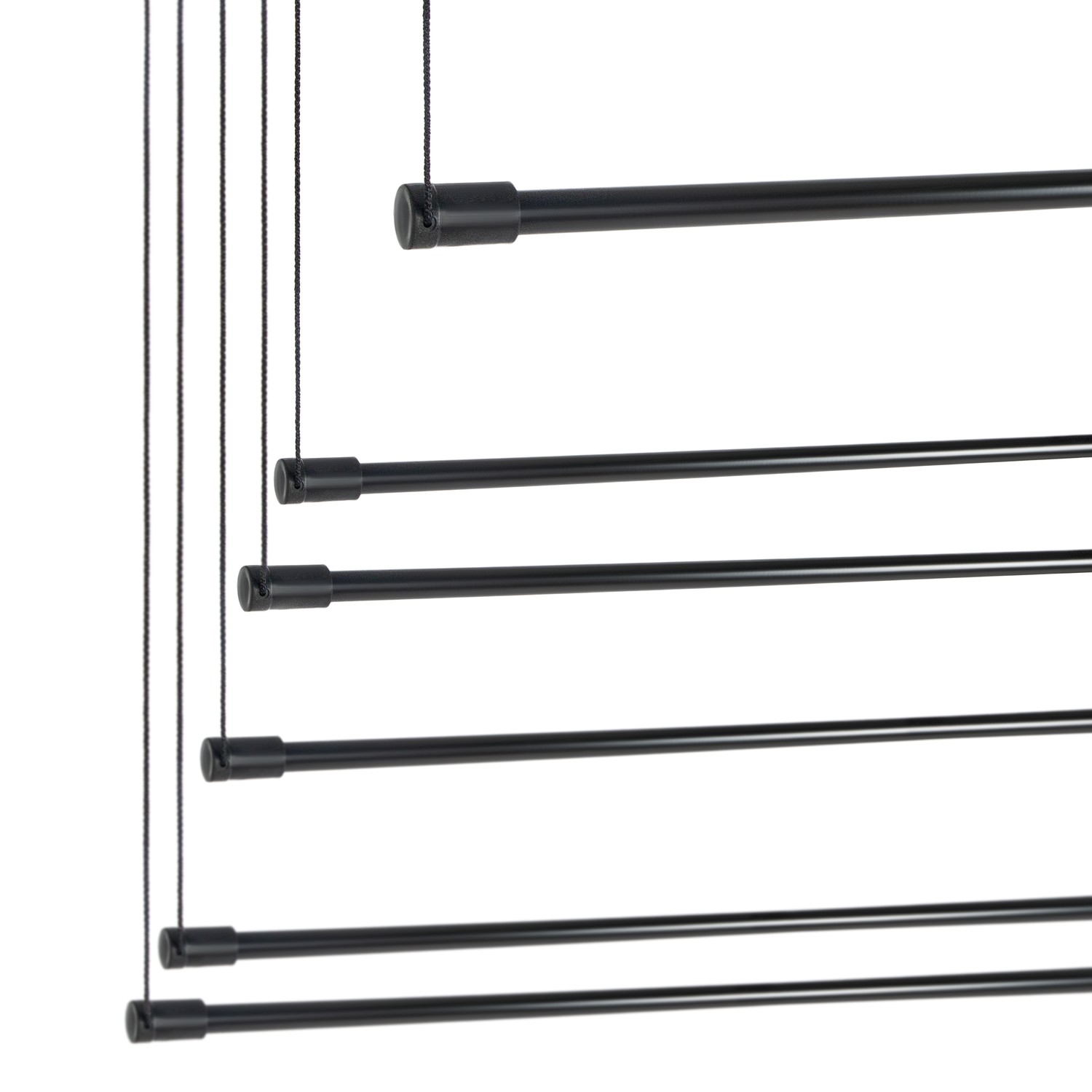

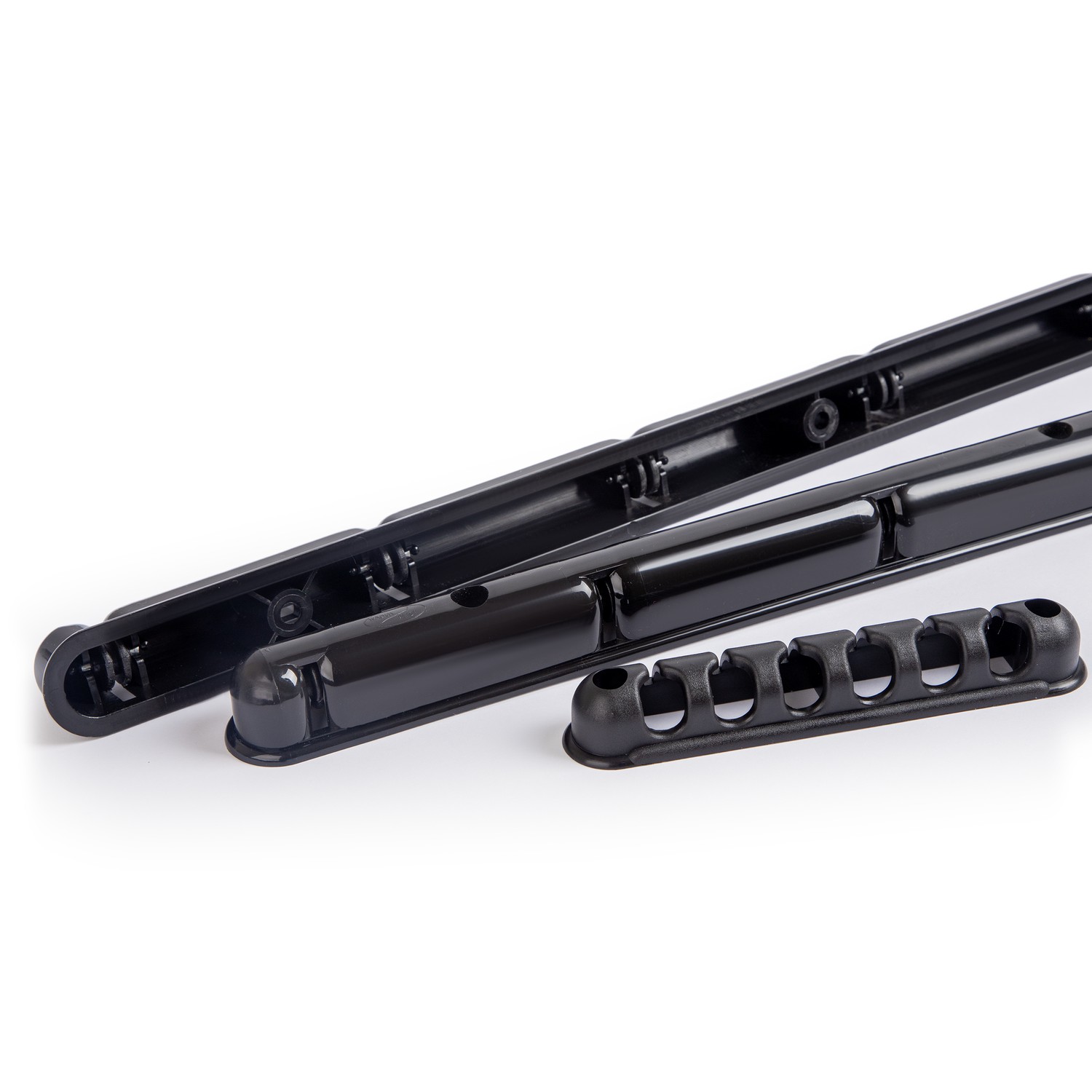

The rods of the structure are made of aluminum and coated with powder paint. The fastening elements are made of durable plastic that does not deform over time. The dryer is designed for long-term use and is suitable for everyday household use.
RELIABILITY

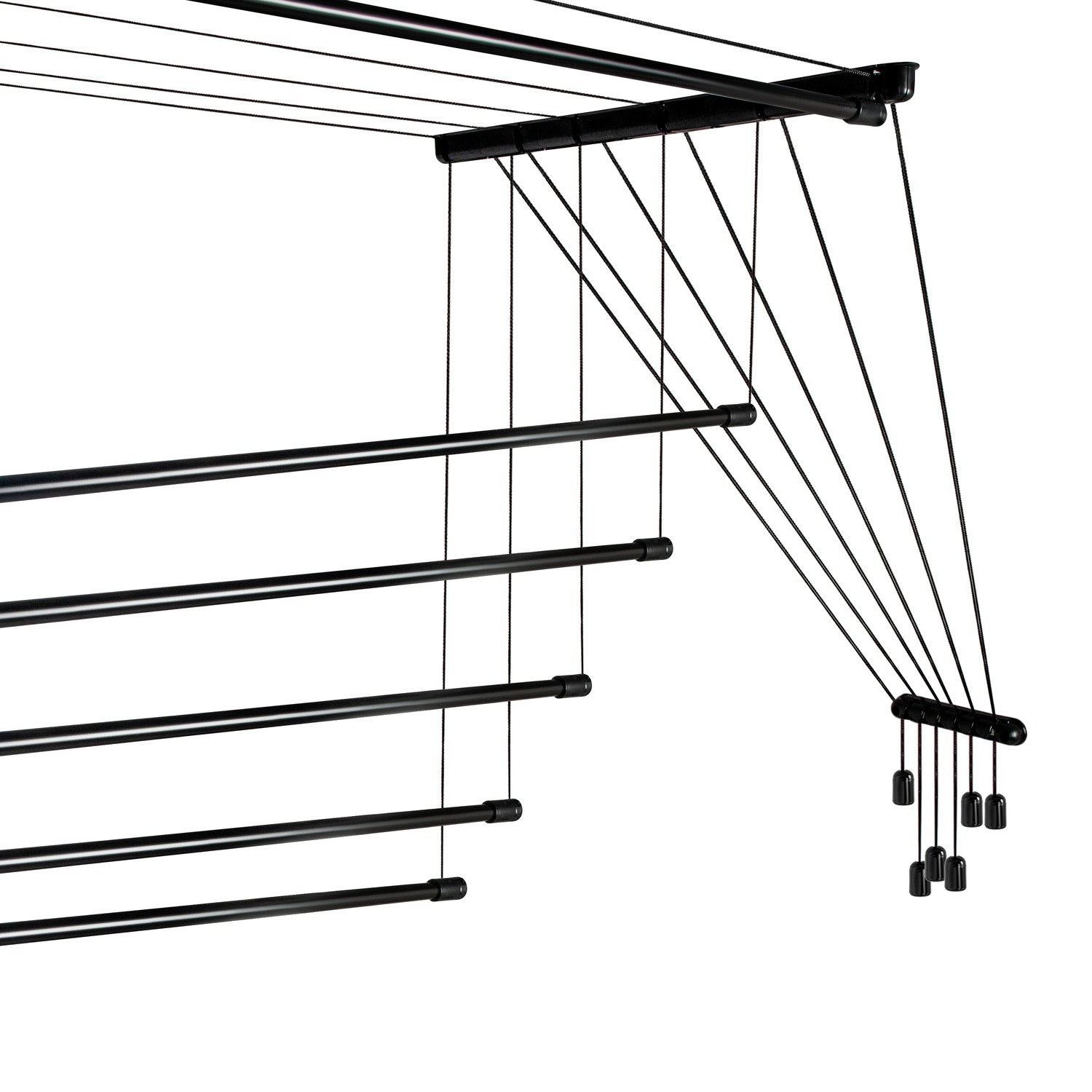

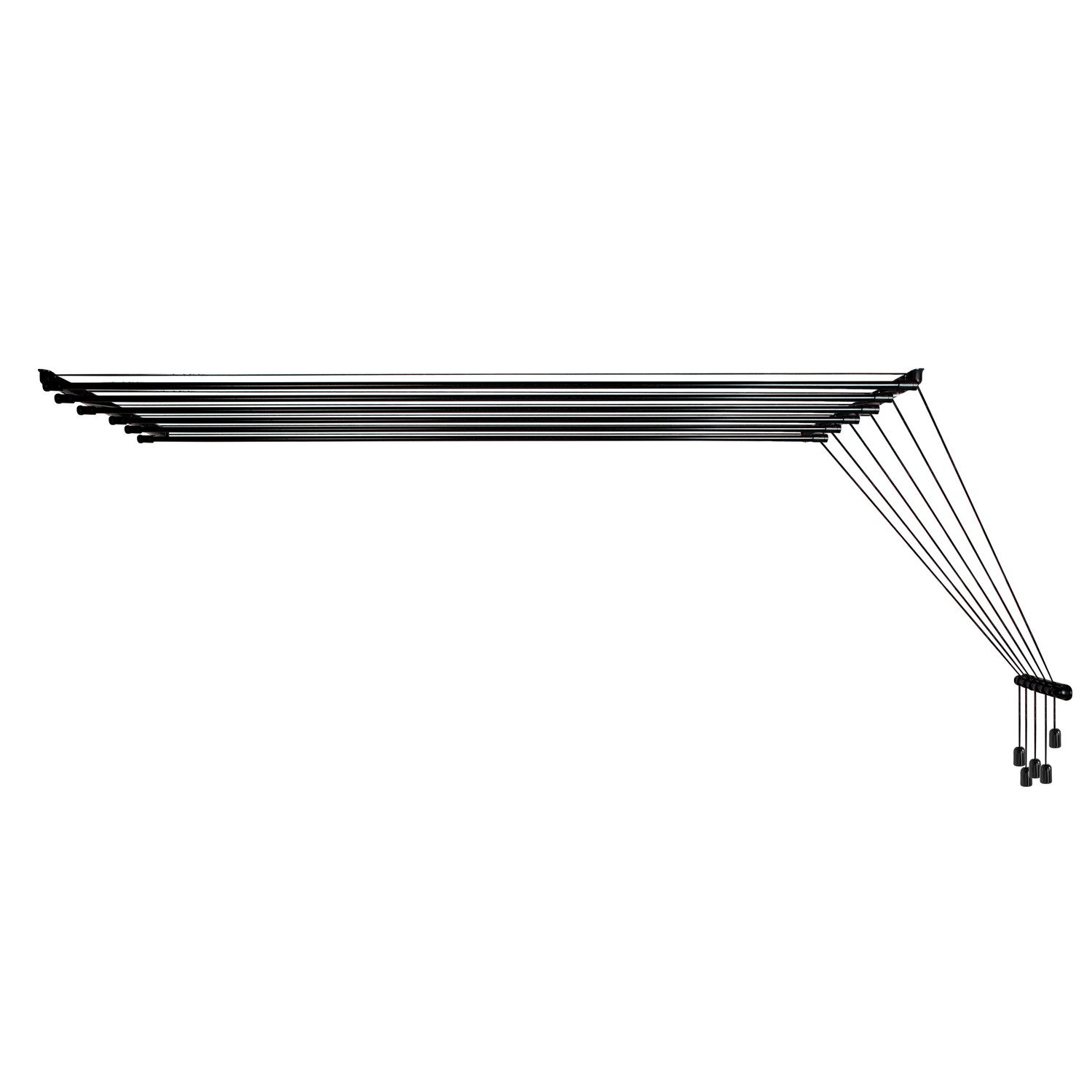

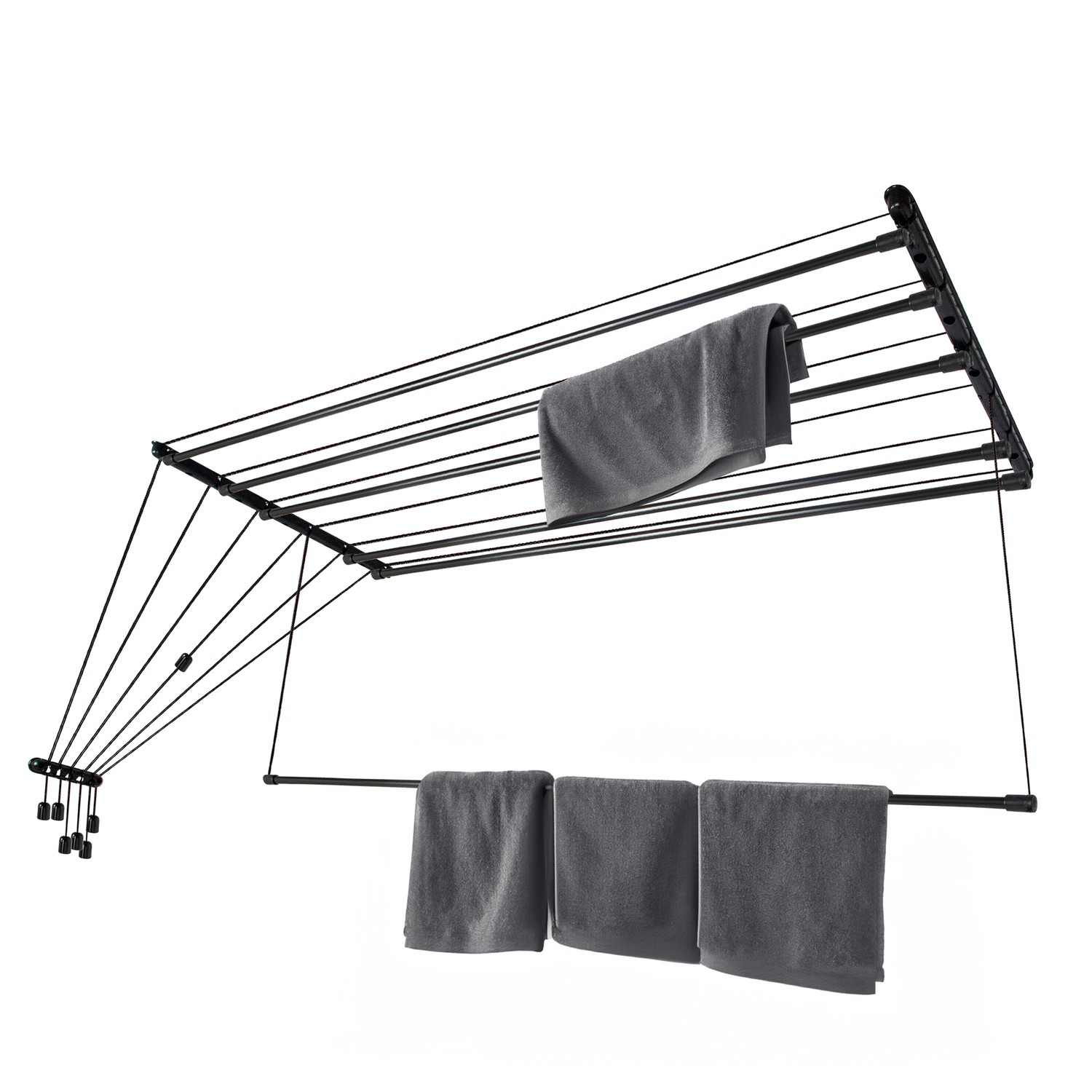

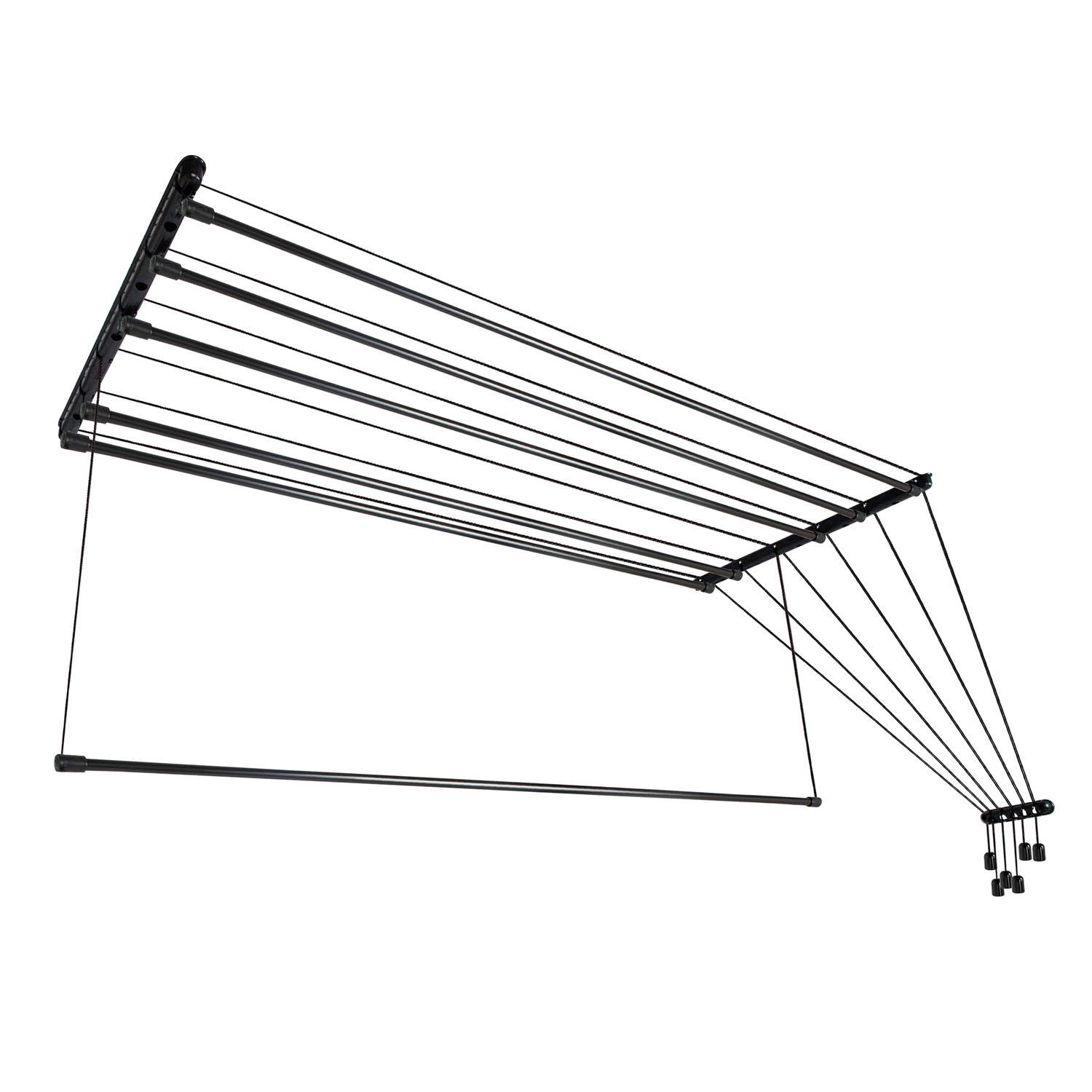

To hang the laundry, the dryer rods are lowered to the desired level and then raised back up. The washed clothes dry under the ceiling, saving space. When not in use, the dryer takes up minimal space, does not obstruct movement, and does not interfere with the opening of balcony doors or windows.
COMPACTNESS AND SIMPLICITY

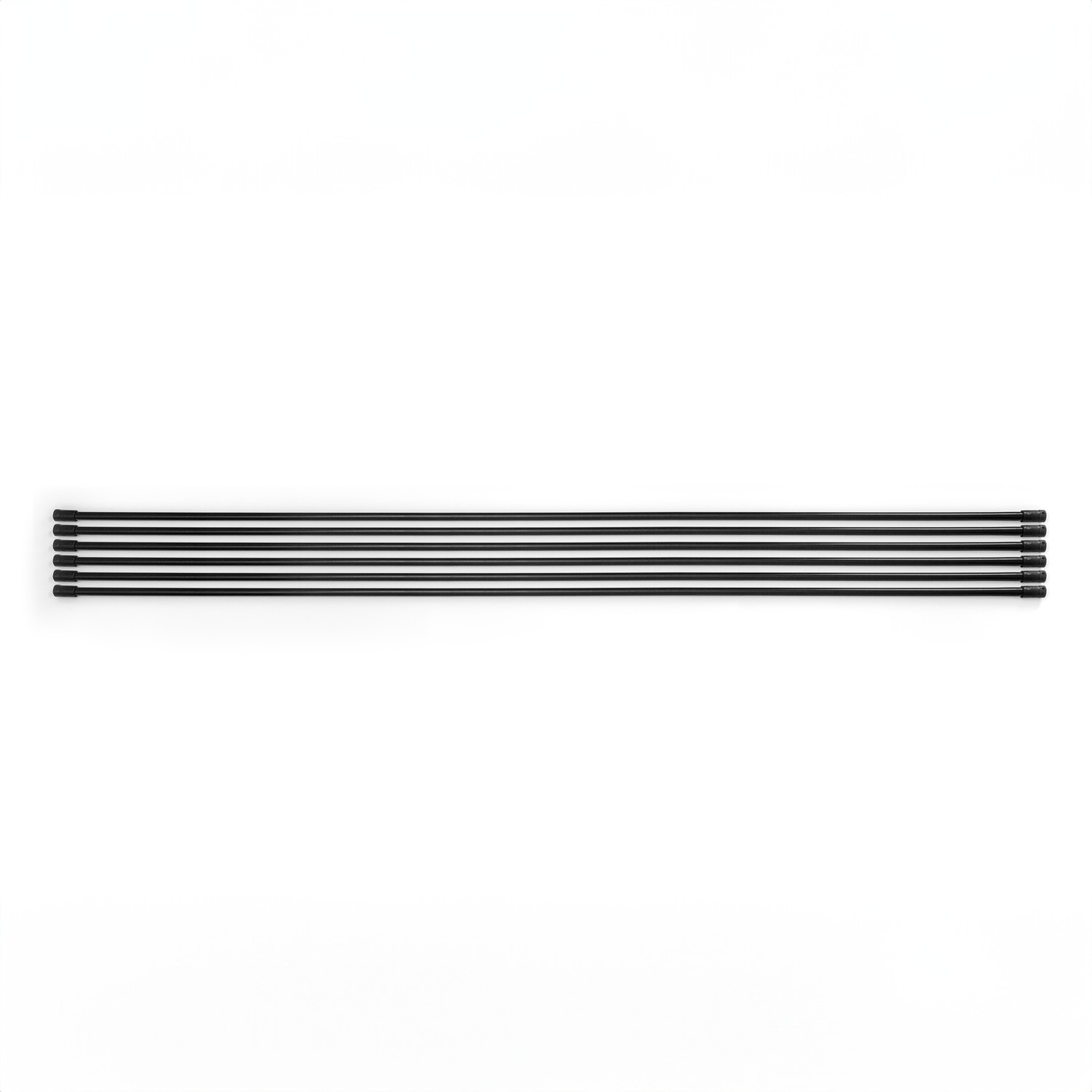

The drying surface is 12 m, and the dimensions of the structure are 200 × 45 cm. The dryer consists of five rods, each 200 cm long. Thanks to their large diameter, clothes do not get marks or creases after drying. The recommended load is up to 2 kg per rod. The weight of the structure is 1.88 kg.
Advantages
To hang the laundry, the dryer rods are lowered to the desired level and then raised back up. The washed clothes dry under the ceiling, taking up little space. When not in use, the dryer occupies minimal space, does not obstruct movement, and does not interfere with the opening of balcony doors or windows.
Additional information
| Working Surface Length | 12 m |
|---|---|
| Rod Length | 200 cm |
| Material | Aluminum |
| Rod Count | 6 rods |
| Color | Black |
| Maximum Load per Rod | 2 kg |
| Weight | 1.88 kg |
Installation guide
Ceiling Dryer installation guide
Please read the manual before use.
Universal Installation Guide

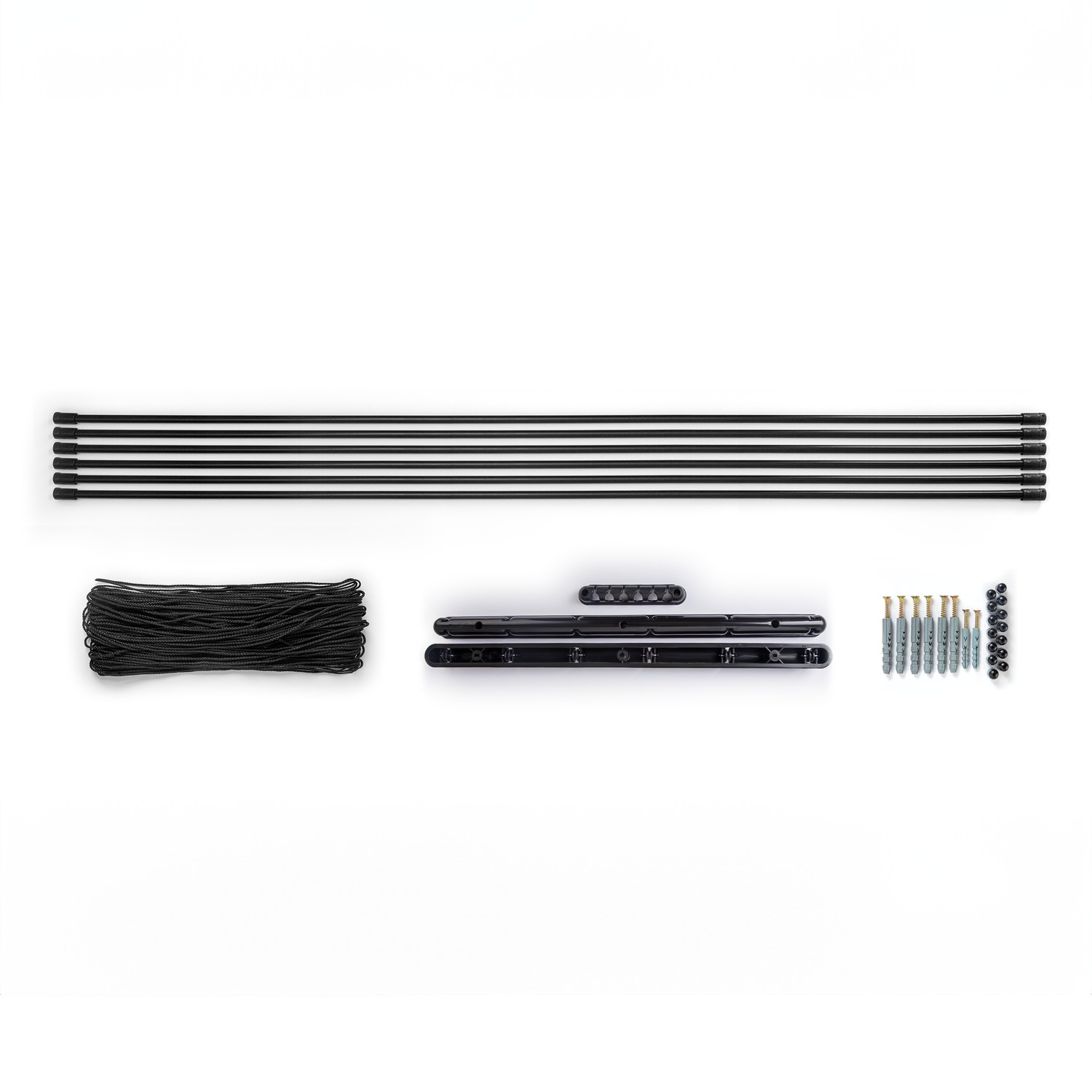

Unpacking and Preparation
Unpack the product and ensure all components are present.
Identify the number of measuring rods and corresponding accessories based on the model.

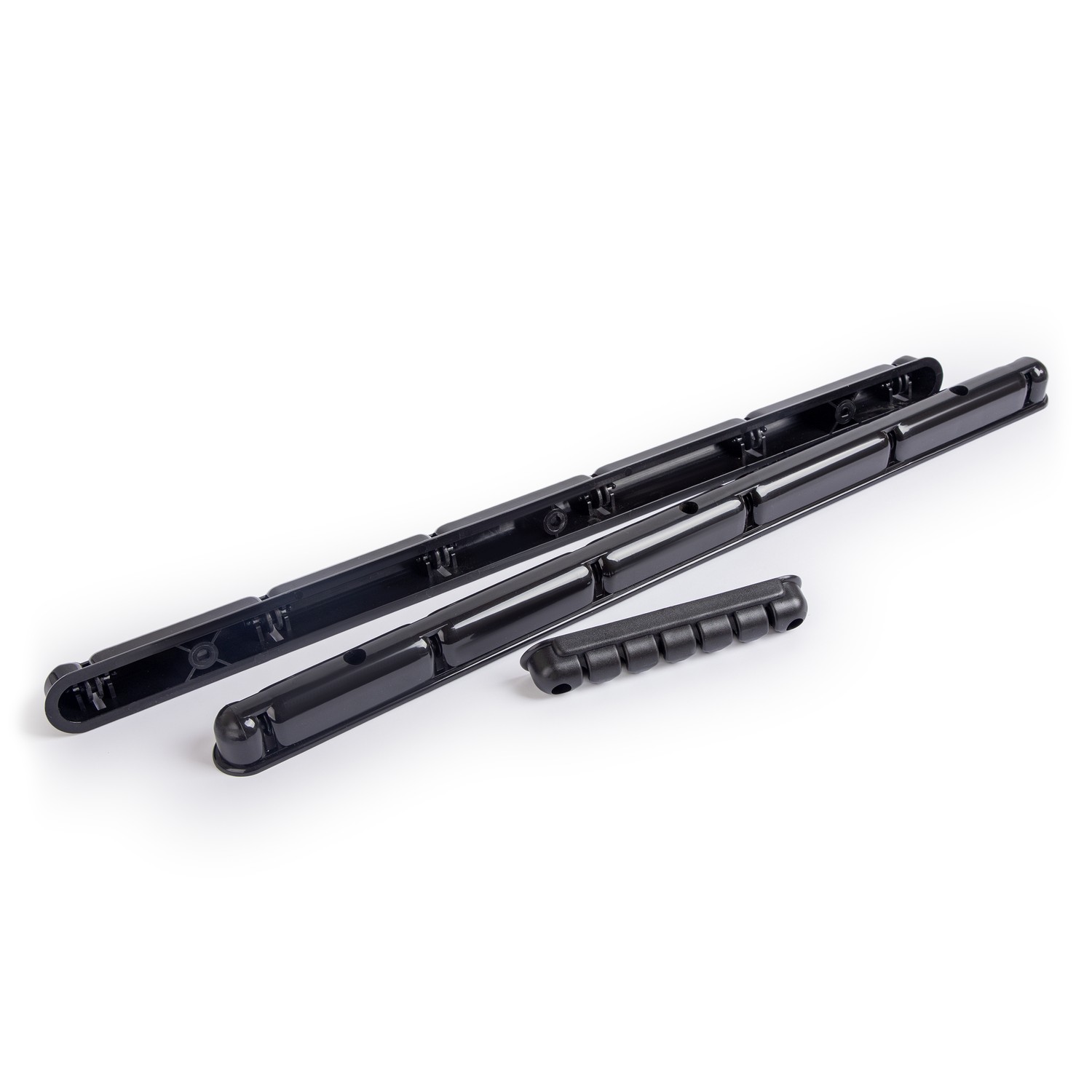

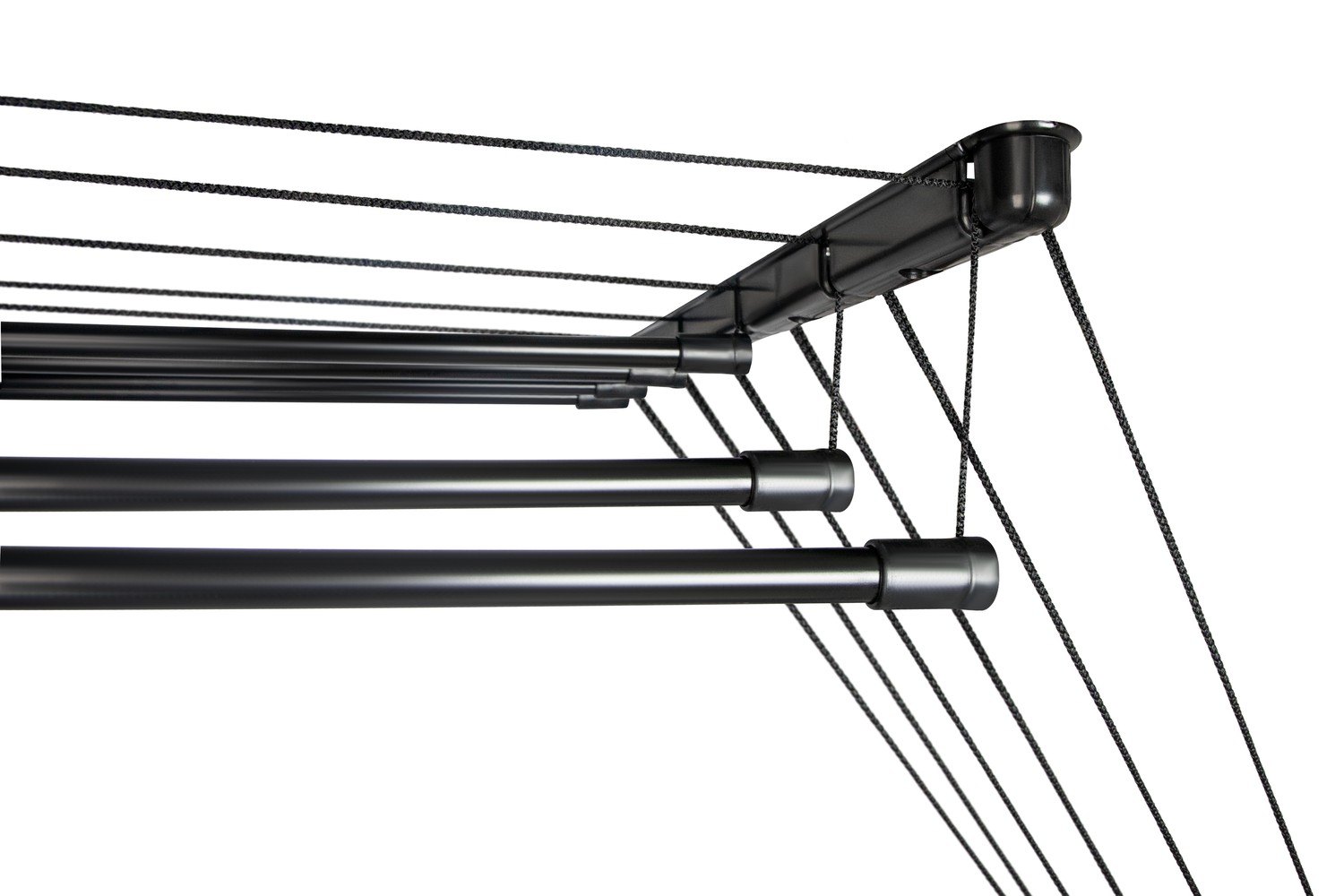

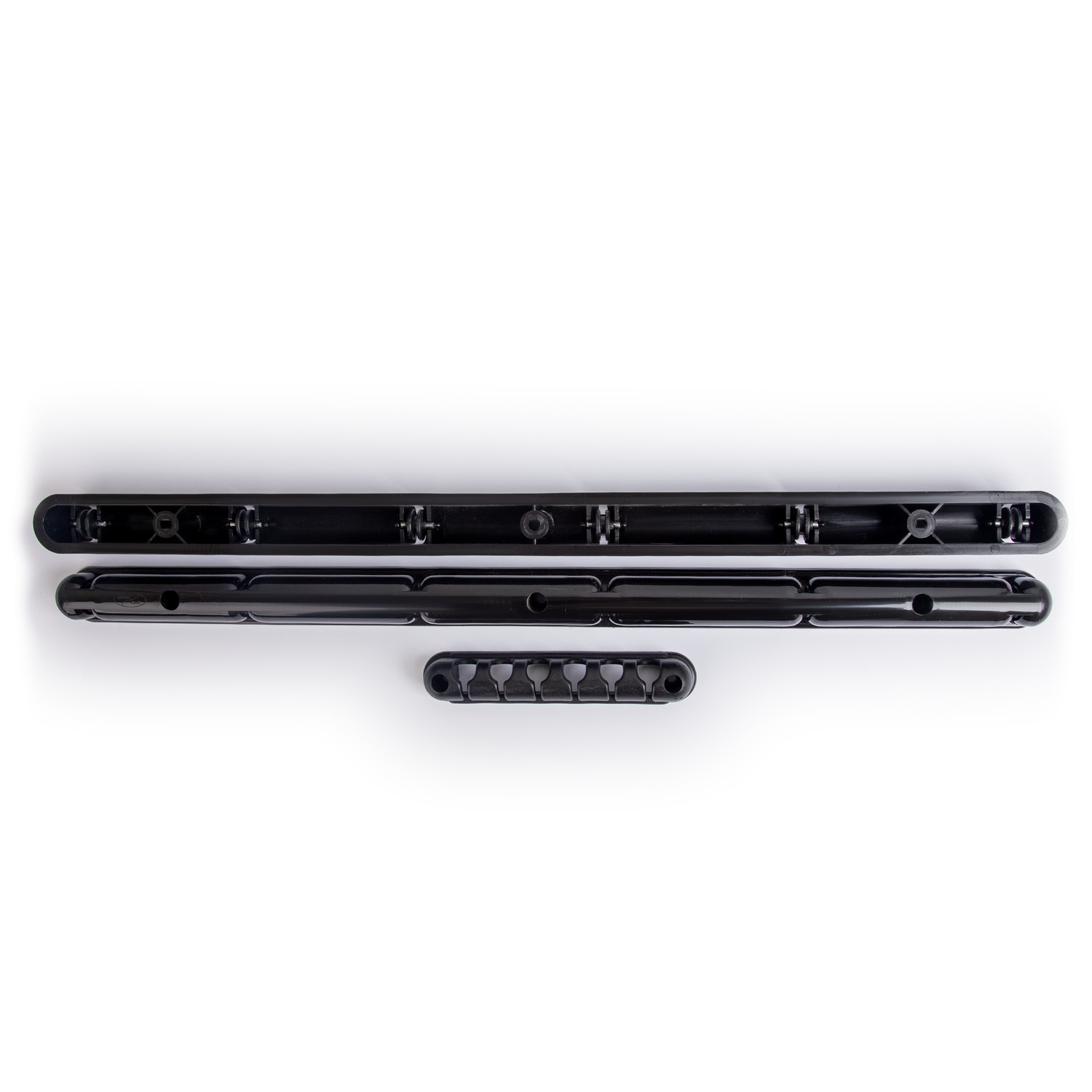

Installing the Brackets with Rollers
The brackets with rollers must be fixed to the ceiling using screws.
The distance between the brackets should correspond to the length (L) of the measuring rods, minus 18–20 mm for the central hole of the mounting structure.
Steps:
Measure and mark two parallel lines on the ceiling (the distance between them depends on the size of the drying rack).
Position the brackets with rollers along these lines and mark the drilling points.

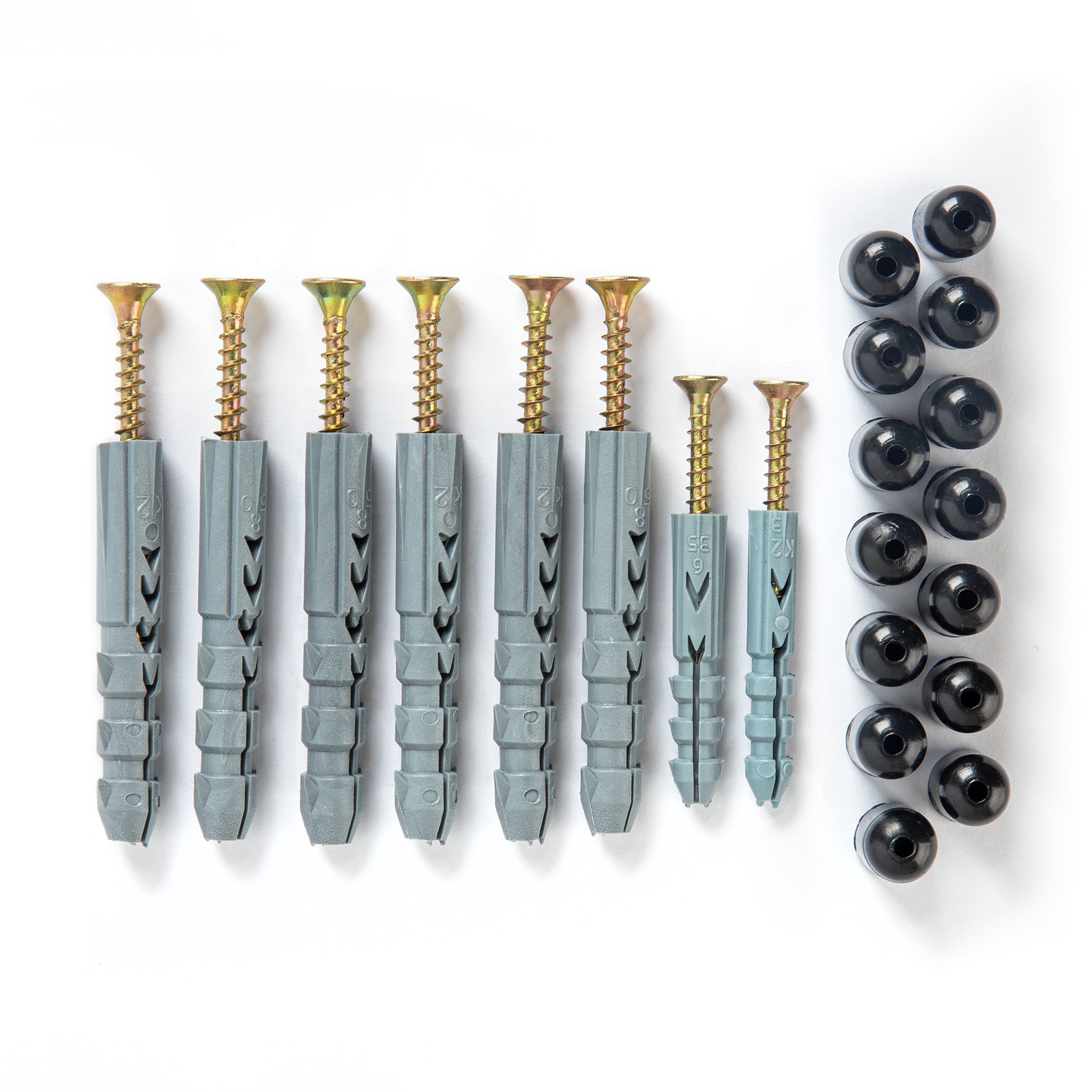

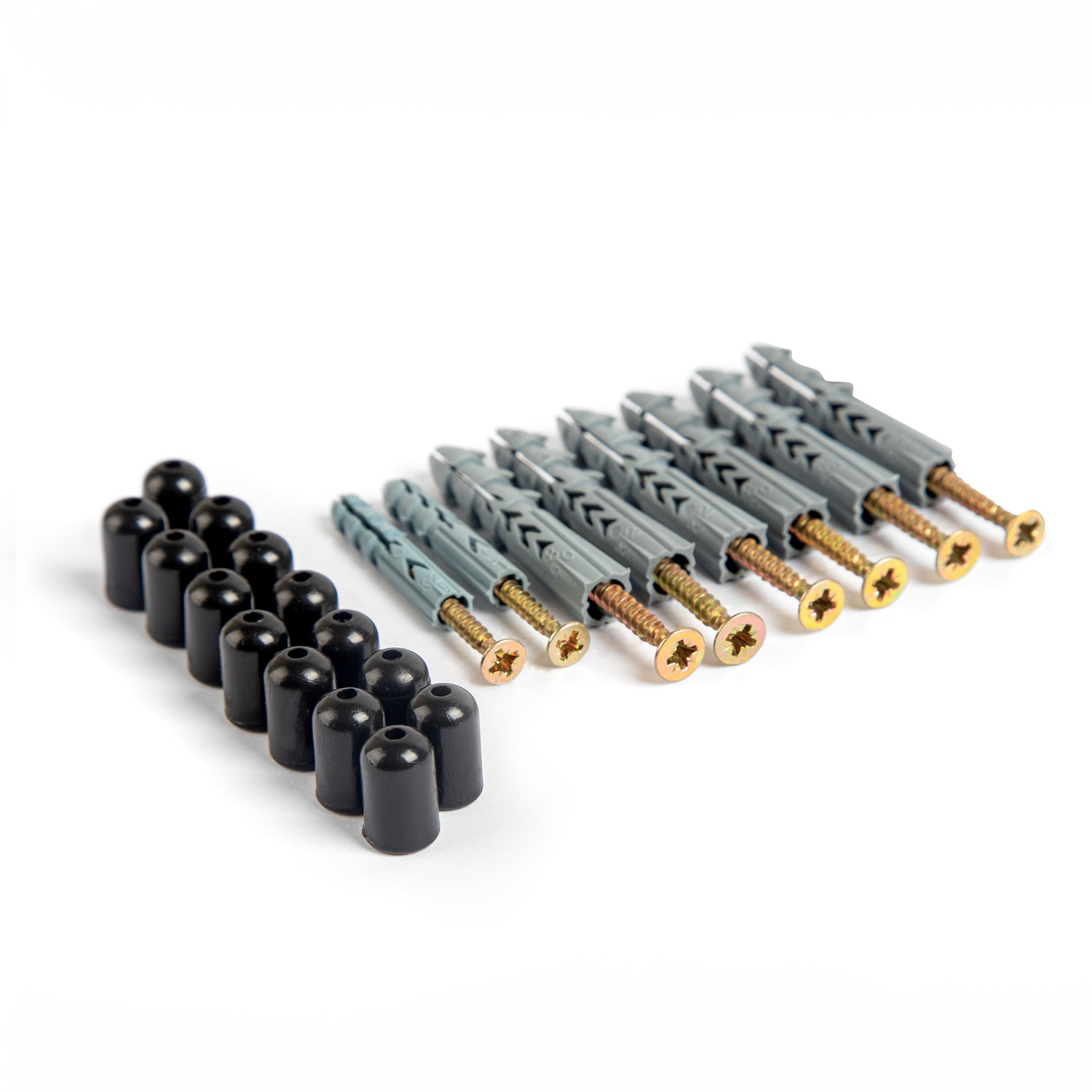

Drill holes and secure the brackets using the bracket mounting kit.

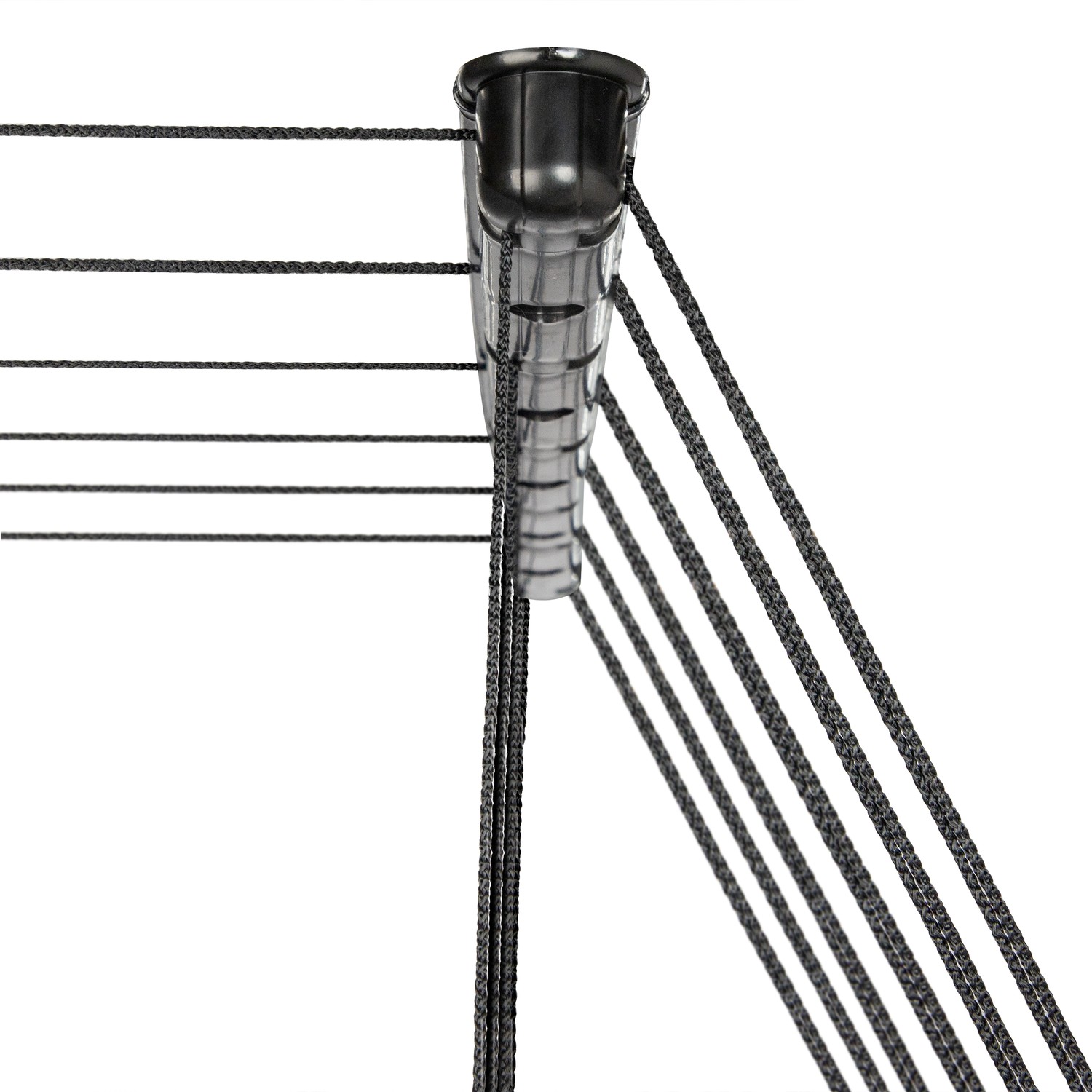

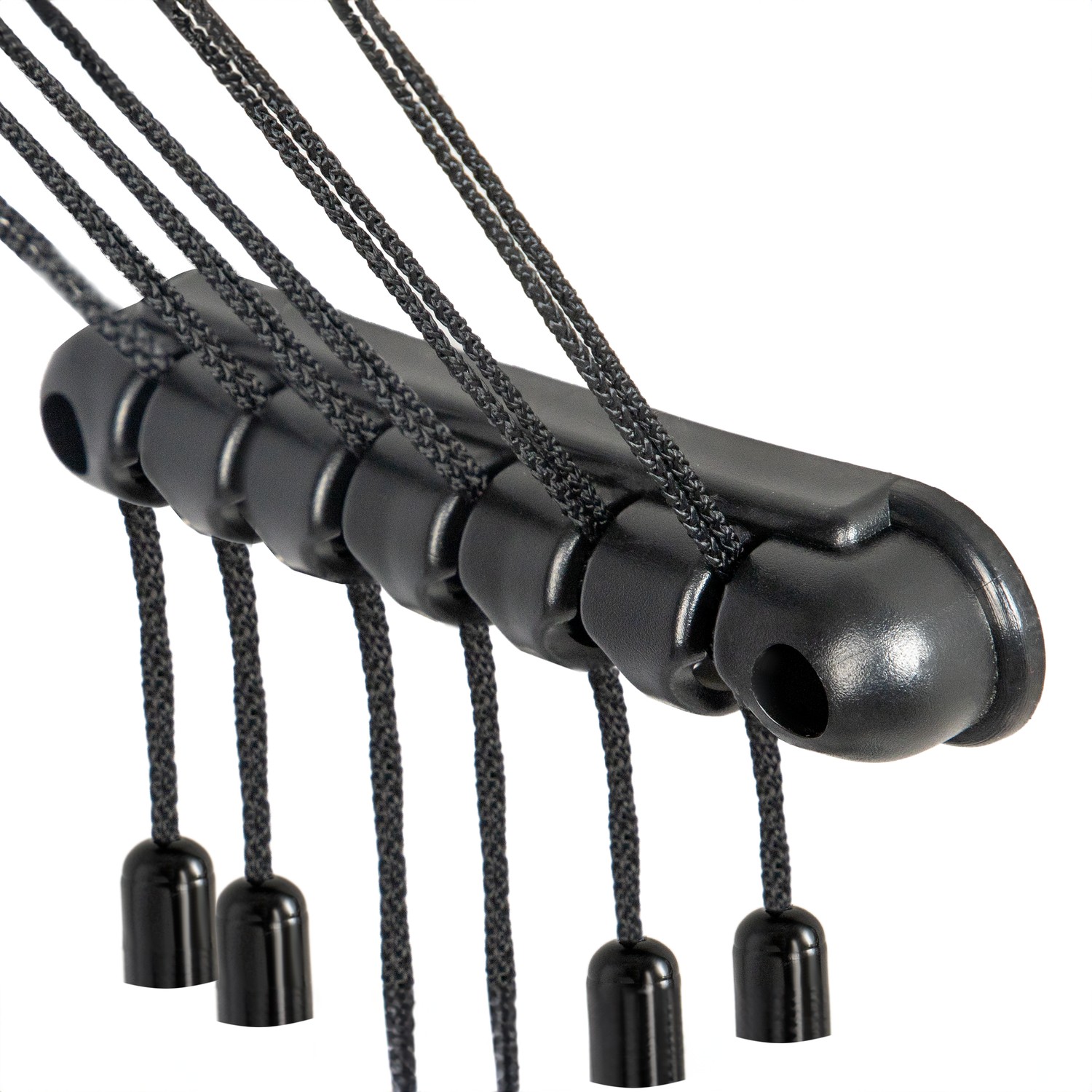

Determining and Installing the Height Adjustment Comb
Steps:
- Choose an optimal height for installing the height adjustment comb (recommended: 1.3–1.6 meters from the floor).
- Use a measuring rod to determine the most convenient height for usage.
- Drill holes at the selected height.
- Secure the height adjustment comb using the provided mounting kit.
Preparing the Cords

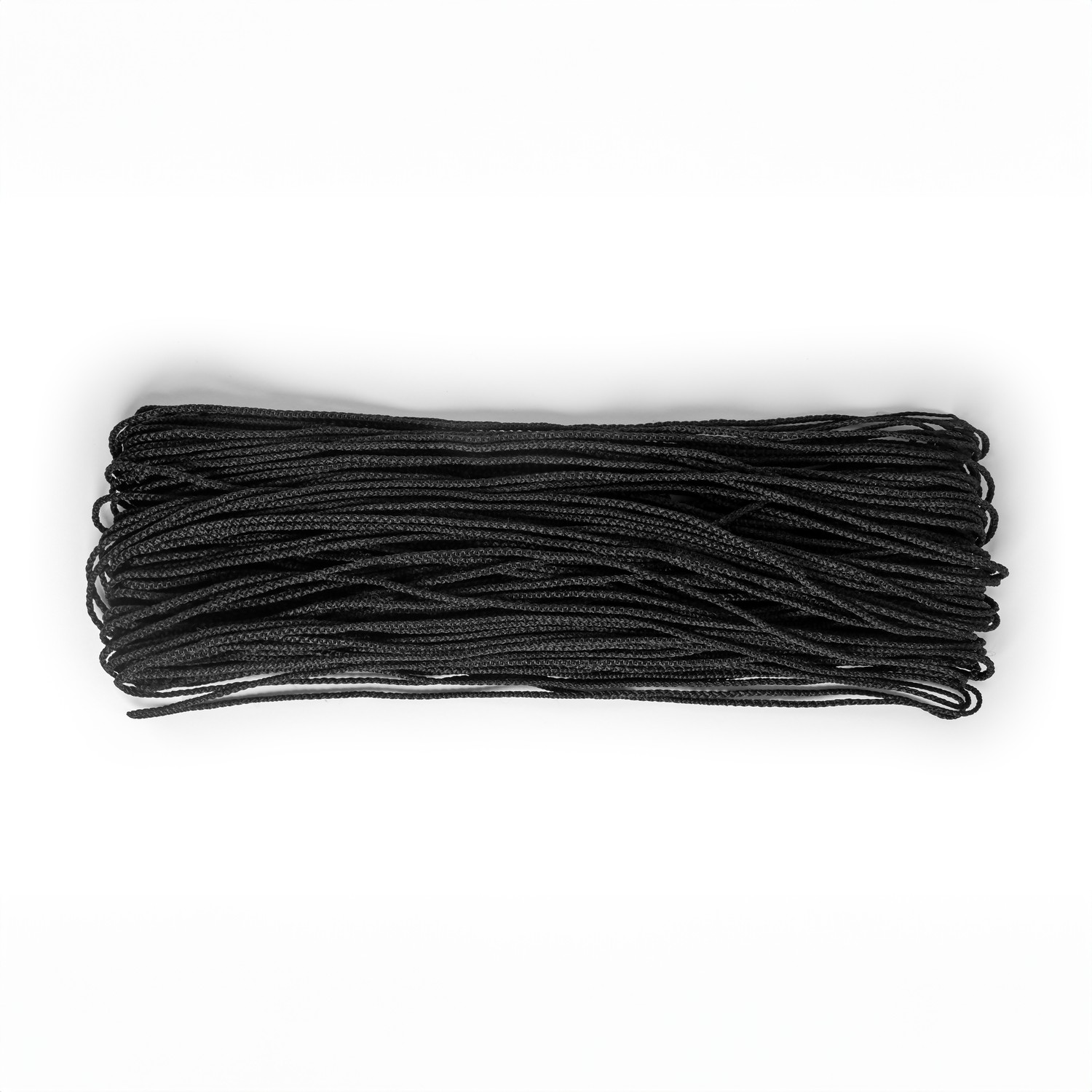

Separate the cords from the roll according to the number of measuring rods.
Insert one end of a pre-cut cord through the smaller hole of the fixation cap on one side of the measuring rod and tie a large knot so that it stops in the larger hole.
Thread the other end of the cord through the roller bracket, lower it to the opposite end of the measuring rod, and secure it in the same way.
Fold the cord in half between the fixation points and thread it through the second roller bracket.
Thread the folded cord through the fixation caps, lift the measuring rod to the ceiling, and secure the first height level. Adjust the second height level to a comfortable user height.
Final Checks
Before use, wipe the measuring rods with a damp cloth.
Ensure all components are securely fixed and functioning properly.
